Hullett Machine Shop

State of the industry capabilities are a source of pride for Hullett Machine.

CNC Lathe

CNC Veritcal Machining Center with 21-tool change. Machining cap has 40" X axis travel, 20" Y axis travel, and 12" height travel. Handles plates 24" wide x 5' long. Close tolerance, repeatability, precision machining.

Sharp Vertical and Horizontal Mill. Large table cap, 36" X axis travel, 12" Y axis travel, capable of vertical and horizontal boring and face milling. Large keyway, drilling, tapping, large plate work, and large piece work.

(5) Vertical Knee-Type Precision Milling Machines with digital readout to .0005". Drills, taps, bores, rotary table work, angle plate work, precision tooling and fixture work.

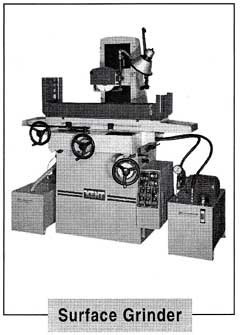

(2) Surface Grinders for precision grinding. Table cap is 8 x 16 with 12" height.

(1) DCM Rotary Surface Grinder with 18" table and 6: Z axis.

(6) Precision Lathes:

  • 22" swing, 9' center, 15" chuck turns shafts up to 22 " diameter
  • 22: swing, 6' center
  • 20" swing, 8' center
  • CNC Mazak quick turn 20
  • (2) with capability from .062" to 5" diameter

NOTE: 4 lathes have center spindle holes of 3.125" diameter to and accept long or odd-shaped shafts. Threads are American Standard and Metric, O.D. and I D. All lathes have digital readout to .0005".

Lathe Chucking Cap, 3 jaws up to 12" diameter, 4 jaws up to 16" diameter, face plate holds any odd-shaped part.

repair machine tool

Welding capabilities for steel, stainless steel, aluminum, cast iron and bronze.

Milling Machine

Wire Feed Welding, hot roll cold roll steel, shafts, tubing, weldment frames.

Electrode Arc Welding for stainless steel, alloy steel, cast iron.

Hydraulic Press:

  • 60-ton
  • Pressing bushings and bearing in and out.
  • Straightening shafts and bars
  • Bending flat stock into brackets



Other Services
Some of the more infrequently used machining-related services would only drive up our overhead cost if we offered them inside our shop. Instead, we've discovered that we can control cost more effectively and still maintain Hullett's high quality standards - through our special working relationships with selected outside vendors. We handle all the details when procurement is required.

    Services offered on this basis include:
  • Heat treating
  • Gear cutting
  • Pressing, shearing fabricating
  • Surface Grinder
  • O.D. grinding
  • Honing
  • Laser and flame cutting
  • Vendors of steel (round, square, tubing), aluminum, bronze and plastic, bushings and bearings)
  • Plating (including chrome plating) and painting
  • Wire EDM
  • Balancing
    We also offer engineering services to assist you in:
  • Material selection
  • Documentation of your existing part
  • Parts design and modification
  • Complete fixture design of machine
